Merge pull request #319 from DidierRLopes/screener-plot

Add view to screener data

ROADMAP.md

@@ -181,6 +181,7 @@
 * [x] Add Screener menu with overview, valuation, financial, ownership, performance, technical commands based on filter presets from Finviz (@didier) - [PR #314](https://github.com/DidierRLopes/GamestonkTerminal/pull/314)
 * [x] Add README with explanation of how presets are stored and can be added by experienced users. (@didier) - [PR #314](https://github.com/DidierRLopes/GamestonkTerminal/pull/314)
 * [x] Add screener signals (e.g. top gainers, new highs, most volatile, oversold, major news, ...) from Finviz (@didier) - [PR #314](https://github.com/DidierRLopes/GamestonkTerminal/pull/314)
+* [x] Plot screener historical using Yahoo Finance data (@didier) - [PR #319](https://github.com/DidierRLopes/GamestonkTerminal/pull/319)

 **NEXT**


gamestonk_terminal/screener/README.md

@@ -6,6 +6,8 @@ This menu aims to filter stocks based on pre-specified preset filters, and the u
   * view available presets
 * [set](#set)
   * set one of the available presets
+* [historical](#historical)
+  * view historical price [Yahoo Finance]
 * [overview](#overview)
   * overview information [Finviz]
 * [valuation](#valuation)
@@ -45,6 +47,23 @@ Set preset from under presets folder.
 * -p : Filter presets


+## historical <a name="historical"></a>
+
+```text
+usage: historical [-t {o,h,l,c,a}] [-s {top_gainers,top_losers,...}] [--start START]
+```
+
+View historical price of stocks. [Source: Yahoo Finance]
+
+* -t : Type of candle: Default 'a' for adjusted close.
+* -s : Signal type. Default: None. When specified (see list available in [signals](#signals)), the preset is disregarded.
+* --start : Start time with format "%Y-%m-%d". Default 6 months earlier.
+

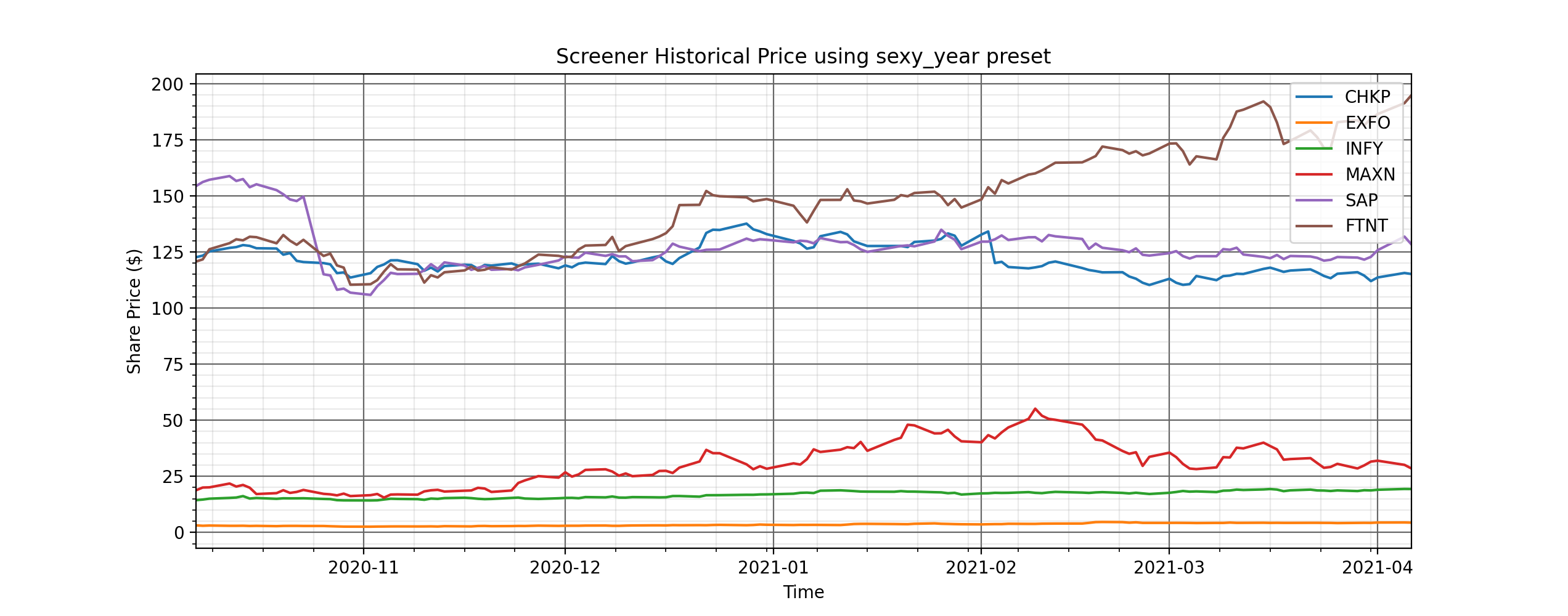

+![screener_view](https://user-images.githubusercontent.com/25267873/113784557-8bd13c00-972d-11eb-9776-0e192bb83515.png)
+

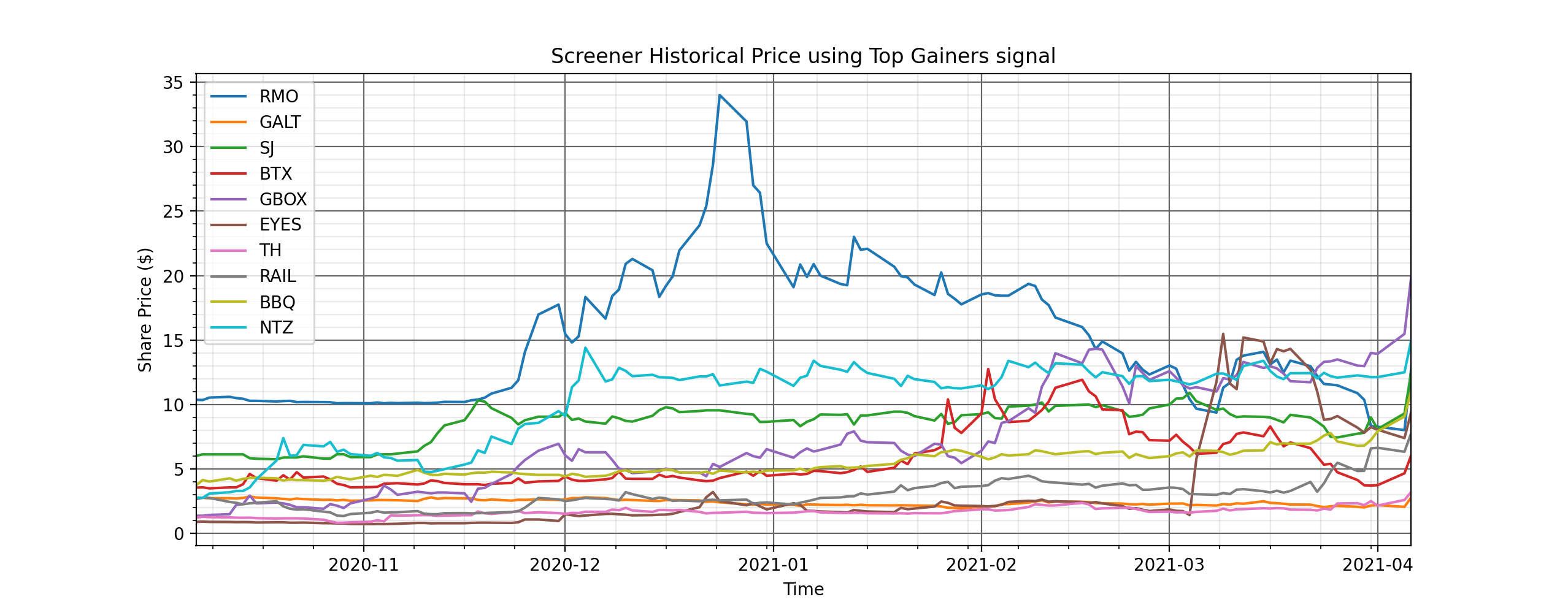

+![top_gainers](https://user-images.githubusercontent.com/25267873/113784834-f97d6800-972d-11eb-8112-6c80f4e2cf5e.png)
+
+
 ## overview <a name="overview"></a>

 ```text

gamestonk_terminal/screener/screener_controller.py

@@ -4,6 +4,7 @@ __docformat__ = "numpy"
 import os
 import argparse
 from typing import List
+import matplotlib.pyplot as plt
 from gamestonk_terminal import feature_flags as gtff
 from gamestonk_terminal.helper_funcs import get_flair
 from gamestonk_terminal.menu import session
@@ -12,6 +13,7 @@ from gamestonk_terminal.helper_funcs import (
     parse_known_args_and_warn,
 )
 from gamestonk_terminal.screener import finviz_view
+from gamestonk_terminal.screener import yahoo_finance_view


 class ScreenerController:
@@ -24,6 +26,7 @@ class ScreenerController:
         "quit",
         "view",
         "set",
+        "historical",
         "overview",
         "valuation",
         "financial",
@@ -56,6 +59,7 @@ class ScreenerController:
         print("")
         print(f"PRESET: {self.preset}")
         print("")
+        print("   historical     view historical price")
         print("   overview       overview information")
         print("   valuation      valuation information")
         print("   financial      financial information")
@@ -181,6 +185,10 @@ class ScreenerController:
         """Process overview command"""
         self.set_preset(self, other_args)

+    def call_historical(self, other_args: List[str]):
+        """Process historical command"""
+        yahoo_finance_view.historical(other_args, self.preset)
+
     def call_overview(self, other_args: List[str]):
         """Process overview command"""
         finviz_view.screener(other_args, self.preset, "overview")
@@ -230,6 +238,8 @@ def menu():
             an_input = input(f"{get_flair()} (scr)> ")

         try:
+            plt.close("all")
+
             process_input = scr_controller.switch(an_input)

             if process_input is not None:

gamestonk_terminal/screener/yahoo_finance_view.py

@@ -0,0 +1,186 @@
+import argparse
+from typing import List
+from pandas.plotting import register_matplotlib_converters
+import matplotlib.pyplot as plt
+import datetime
+import configparser
+import yfinance as yf
+from finvizfinance.screener import ticker
+from gamestonk_terminal.screener import finviz_view
+from gamestonk_terminal import feature_flags as gtff
+from gamestonk_terminal.helper_funcs import (
+    parse_known_args_and_warn,
+    plot_autoscale,
+    valid_date,
+)
+from gamestonk_terminal.config_plot import PLOT_DPI
+
+register_matplotlib_converters()
+
+d_candle_types = {
+    "o": "Open",
+    "h": "High",
+    "l": "Low",
+    "c": "Close",
+    "a": "Adj Close",
+}
+
+
+def check_one_of_ohlca(type_candles: str) -> str:
+    if (
+        type_candles == "o"
+        or type_candles == "h"
+        or type_candles == "l"
+        or type_candles == "c"
+        or type_candles == "a"
+    ):
+        return type_candles
+    raise argparse.ArgumentTypeError("The type of candles specified is not recognized")
+
+
+def historical(other_args: List[str], preset_loaded: str):
+    """View historical price of stocks that meet preset
+
+    Parameters
+    ----------
+    other_args : List[str]
+        Command line arguments to be processed with argparse
+    ticker : str
+        Loaded preset filter
+    """
+    parser = argparse.ArgumentParser(
+        add_help=False,
+        prog="historical",
+        description="""Historical price comparison between similar companies [Source: Yahoo Finance]
+        """,
+    )
+    parser.add_argument(
+        "--start",
+        type=valid_date,
+        default=datetime.datetime.now() - datetime.timedelta(days=6 * 30),
+        dest="start",
+        help="The starting date (format YYYY-MM-DD) of the historical price to plot",
+    )
+    parser.add_argument(
+        "-t",
+        "--type",
+        action="store",
+        dest="type_candle",
+        type=check_one_of_ohlca,
+        default="a",  # in case it's adjusted close
+        help=("type of candles: o-open, h-high, l-low, c-close, a-adjusted close."),
+    )
+    parser.add_argument(
+        "-s",
+        "--signal",
+        action="store",
+        dest="signal",
+        type=str,
+        default=None,
+        help="Signal",
+        choices=list(finviz_view.d_signals.keys()),
+    )
+
+    try:
+        ns_parser = parse_known_args_and_warn(parser, other_args)
+        if not ns_parser:
+            return
+
+        preset_filter = configparser.RawConfigParser()
+        preset_filter.optionxform = str  # type: ignore
+        preset_filter.read(
+            "gamestonk_terminal/screener/presets/" + preset_loaded + ".ini"
+        )
+
+        d_general = preset_filter["General"]
+        d_filters = {
+            **preset_filter["Descriptive"],
+            **preset_filter["Fundamental"],
+            **preset_filter["Technical"],
+        }
+
+        d_filters = {k: v for k, v in d_filters.items() if v}
+
+        screen = ticker.Ticker()
+
+        if ns_parser.signal:
+            screen.set_filter(signal=finviz_view.d_signals[ns_parser.signal])
+        else:
+            if d_general["Signal"]:
+                screen.set_filter(filters_dict=d_filters, signal=d_general["Signal"])
+            else:
+                screen.set_filter(filters_dict=d_filters)
+
+        l_min = list()
+        l_leg = list()
+        plt.figure(figsize=plot_autoscale(), dpi=PLOT_DPI)
+
+        l_stocks = screen.ScreenerView(verbose=0)
+
+        if len(l_stocks) > 10:
+            print(
+                "We limit stocks shown to 10, as after this the plot becomes too noisy. "
+                "Also, we ran out of different colors."
+            )
+            l_stocks = l_stocks[:10]
+
+        while l_stocks:
+            l_parsed_stocks = list()
+            for symbol in l_stocks:
+                try:
+                    df_similar_stock = yf.download(
+                        symbol,
+                        start=datetime.datetime.strftime(ns_parser.start, "%Y-%m-%d"),
+                        progress=False,
+                        threads=False,
+                    )
+                    if not df_similar_stock.empty:
+                        plt.plot(
+                            df_similar_stock.index,
+                            df_similar_stock[
+                                d_candle_types[ns_parser.type_candle]
+                            ].values,
+                        )
+                        l_min.append(df_similar_stock.index[0])
+                        l_leg.append(symbol)
+
+                    l_parsed_stocks.append(symbol)
+                except Exception as e:
+                    print("")
+                    print(e)
+                    print(
+                        "Disregard previous error, which is due to API Rate limits from Yahoo Finance."
+                    )
+                    print(
+                        f"Because we like '{symbol}', and we won't leave without getting data from it."
+                    )
+
+            for parsed_stock in l_parsed_stocks:
+                l_stocks.remove(parsed_stock)
+
+        if ns_parser.signal:
+            plt.title(
+                f"Screener Historical Price using {finviz_view.d_signals[ns_parser.signal]} signal"
+            )
+        else:
+            plt.title(f"Screener Historical Price using {preset_loaded} preset")
+
+        plt.xlabel("Time")
+        plt.ylabel("Share Price ($)")
+        plt.legend(l_leg)
+        plt.grid(b=True, which="major", color="#666666", linestyle="-")
+        plt.minorticks_on()
+        plt.grid(b=True, which="minor", color="#999999", linestyle="-", alpha=0.2)
+        # ensures that the historical data starts from same datapoint
+        plt.xlim([max(l_min), df_similar_stock.index[-1]])
+
+        if gtff.USE_ION:
+            plt.ion()
+
+        plt.show()
+        print("")
+
+    except SystemExit:
+        print("Similar companies need to be provided", "\n")
+    except Exception as e:
+        print(e, "\n")
